AUTOTERM Flow 5D 12V Liquid Heater + Comfort Control | Aloe Gear

Protect your engine and ensure a warm cabin before you even step outside, no matter how remote your campsite. This 5kW liquid heater provides the ultimate peace of mind for off-grid explorers, ensuring reliable starts and interior warmth in the most unforgiving South African winters.

Why the Flow 5D is Essential Gear?

• Engine Longevity: Pre-heats engine coolant to eliminate cold-start wear and tear, extending the life of your vehicle’s most expensive component.

• Instant Interior Warmth: Rapidly transfers heat to your vehicle's existing vents, turning a freezing cabin into a comfortable living space in minutes.

• Sub-Zero Reliability: Engineered to function in temperatures as low as -45°C, ensuring your systems remain operational even in the highest mountain passes.

• Fuel-Sipping Performance: Optimised combustion draws minimal diesel, allowing you to maintain a warm engine without compromising your fuel range for the trek back.

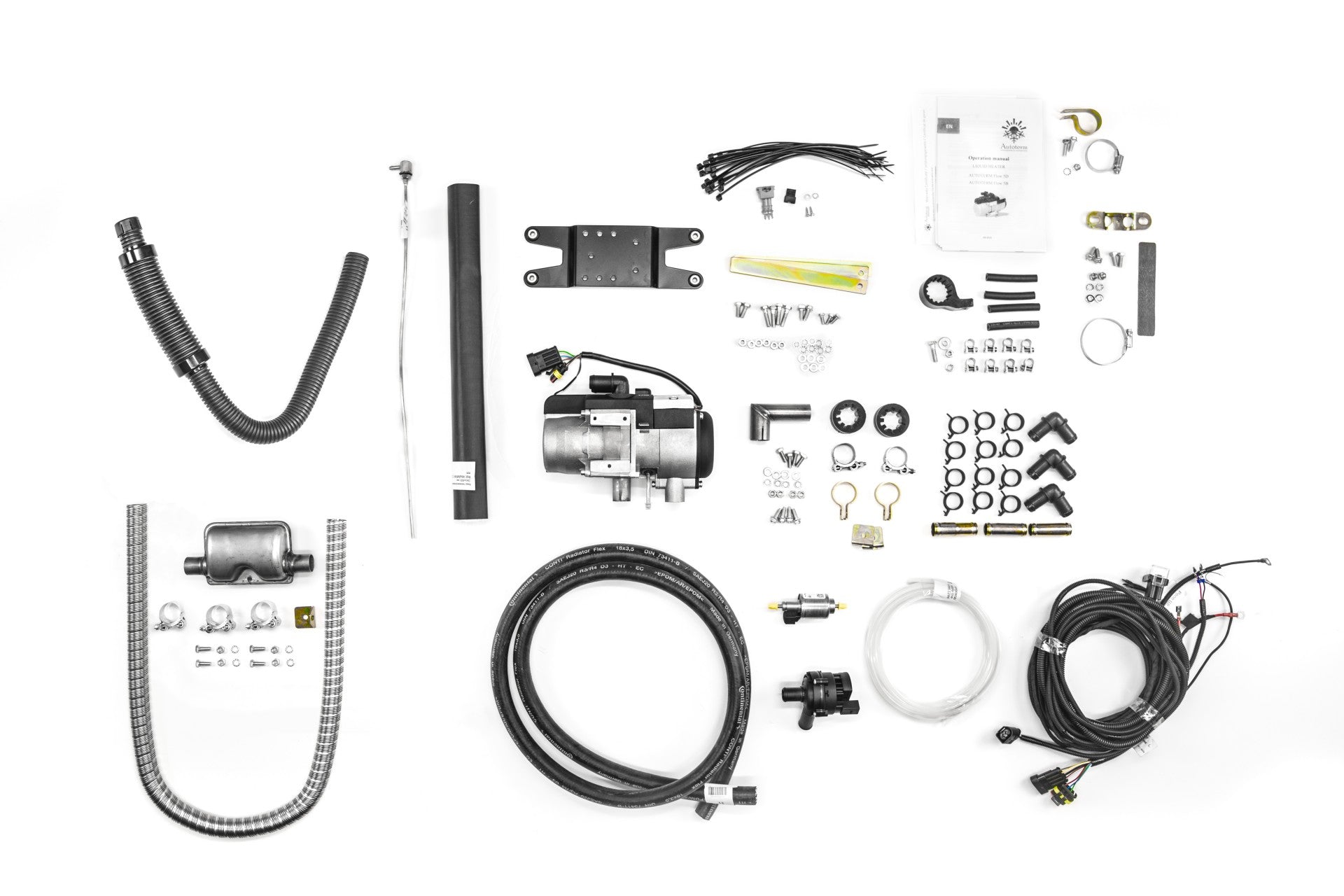

This comprehensive kit contains everything required for a standard installation into your vehicle's coolant circuit, managed by the intelligent Comfort Control interface.

Core Heating Unit & Control

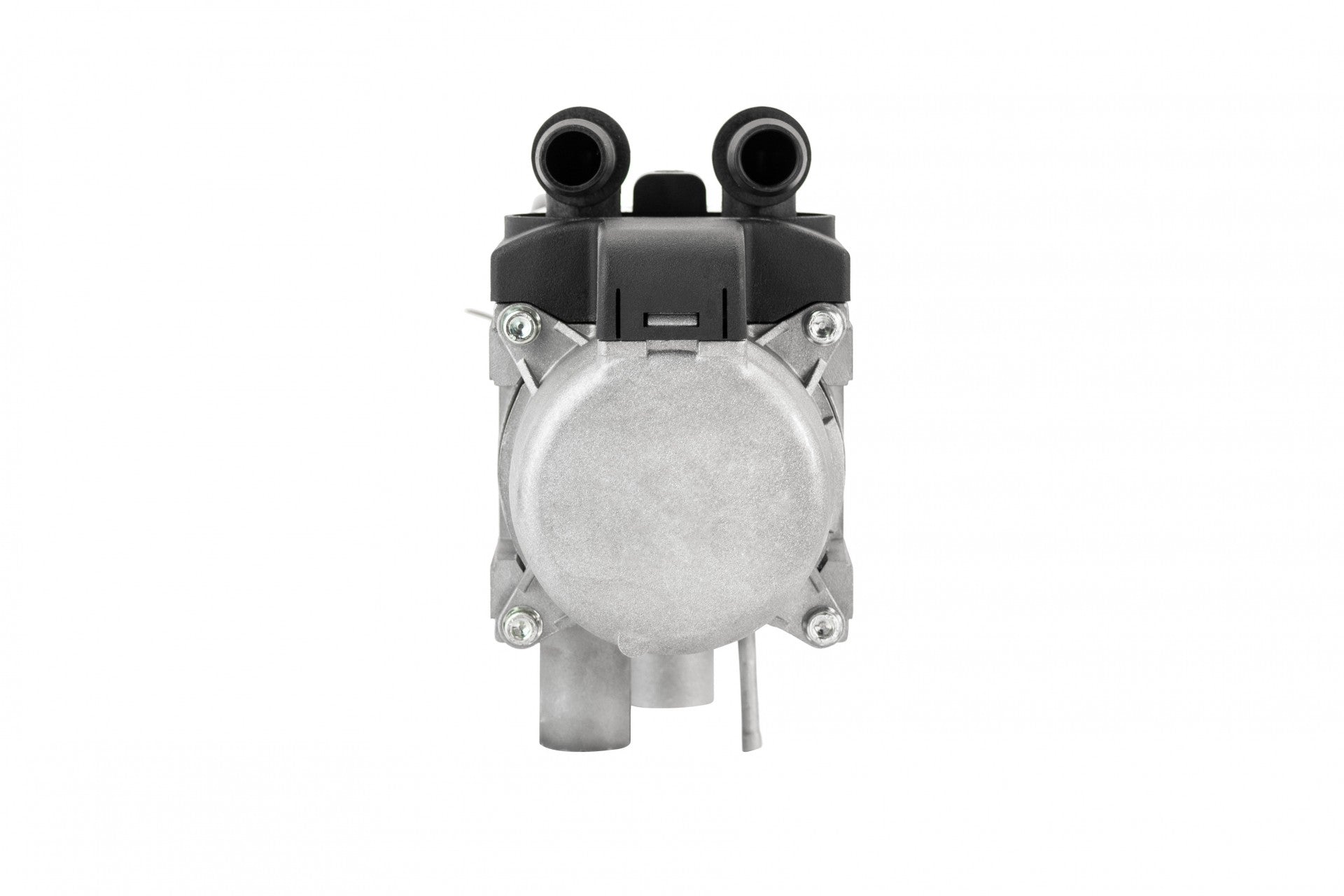

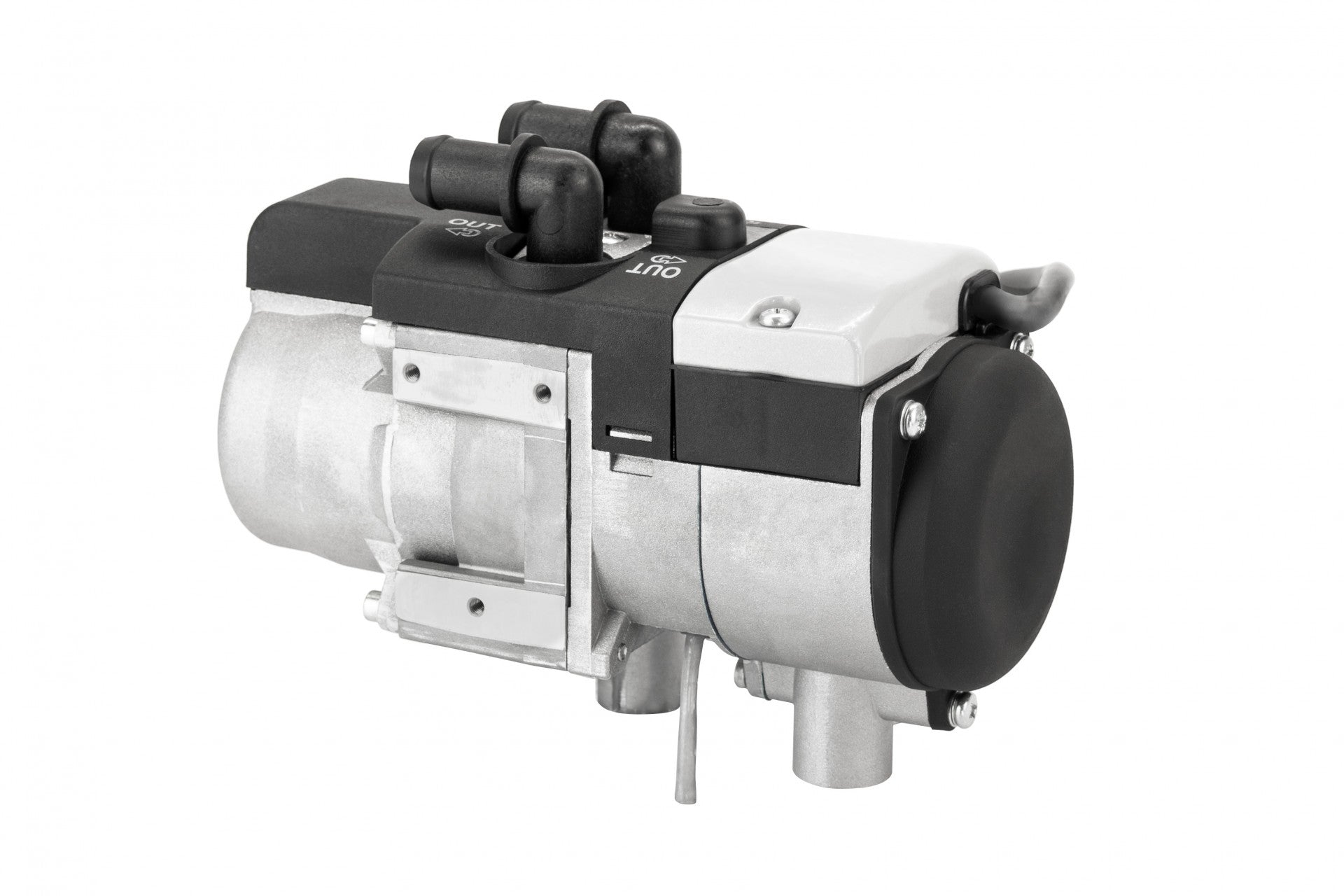

1 x AUTOTERM Flow 5D 12V Heater Unit: The compact 5kW diesel-powered boiler.

1 x Comfort Control Panel: Featuring a high-resolution LCD, thermostat mode, and customizable timers for pre-heating.

1 x Wiring Harness: Complete loom with waterproof connectors for the pump, heater, and control panel.

Fluid Circulation System

1 x Bosch Coolant Pump (12V): High-efficiency circulation pump to move heated coolant through the engine and matrix.

1 x Coolant Hose (approx. 2m): Reinforced EPDM hose for high-temperature fluid transfer.

1 x Plastic Joiner/T-Piece Kit: To integrate the heater into your vehicle's existing coolant lines.

Fuel & Combustion System

1 x TH11 Silent Fuel Pump: The latest "quiet" dosing pump technology.

1 x 5.5m Fuel Line (PA 11): Durable, chemical-resistant fuel piping.

1 x Fuel Tank Standpipe: For direct fuel pick-up from the vehicle's diesel tank.

1 x Air Intake Silencer: Reduces combustion noise at the air intake point.

Exhaust & Mounting

1 x 1m Stainless Steel Exhaust Pipe (24mm): Heavy-duty, flexible 2-ply exhaust.

1 x Exhaust Silencer: Stainless steel muffler for whisper-quiet external operation.

1 x Heat Insulation Sleeve: To protect surrounding components from exhaust heat.

1 x Heavy-Duty Mounting Bracket: Specialized plate for secure chassis or engine bay fitment.

Hardware & Fasteners

Installation Kit: Including all necessary stainless steel hose clamps, p-clips, bolts, and cable ties.

Technical Specialist Note

The Flow 5D is designed to be spliced into the "heater return" hose of your engine. For optimal results in South African 4x4s, we recommend mounting the unit away from direct mud splash to ensure the air intake silencer remains clear during river crossings.
